AA SYSTEL integrates and represents exclusively in China the Acquisition and Recording System of ETEP Company. ETEP was established in 1979, located in the south of France. It is specialized in acquisition and recording systems. Thanks to its stability and precision, its recording products are widely used in the fields of areospace, aircraft manufacturing, nuke, …

  • Airborne Acquisition and Recording System
  • Multichannels acquisition (Video, PCM, analog, Arine 429, 1553 bus, …)
  • Solid State disk card up to 8 TB
  • PCM IRIG 106 for real time transmission to ground

Data Acquisition/Recording Systems

NanoX, most advanced high speed (1 Gbps) Acquisition/Recording/Replay/transmitting system for airborne application, in an ultra-compact and ultra-flexible design.

  • NanoX connector : MICRO D (MIL-DTL-83513)
  • Can up to 16 acquisition modules
  • From 8 GB to 512 GB
NanoX ™
 GeneralModules
NanoS ™ / NanoS2 ™
NanoX ™

Crash Protected Systems

Usually called black box, Sentinel product line is full integrated flight Data Recorders and Data Acquisition Units (DAU) Solutions for data, video, audio and storage applications on board various military or flight test installation.

Sentinel™ ED-112

Sentinel™ CSMU
D.T.MUX Sentinel™

Multi-role/Mission Recorders

A full range of mission/avionics video & data recorders, providing cost-effective, state-of-the-art solutions for video & data acquisition and storage applications on board various airborne platforms.

D.T.MUX M ®

D.T.MUX M ®
D.T.MUX Nano ®
D.T.MUX DVR ®
D.T.MUX M2 ®
D.T.MUX NanoE ®
Directional-antennas
omniantenna
FTGS block diagram

AA SYSTEL also provides the airborne RF components such as :

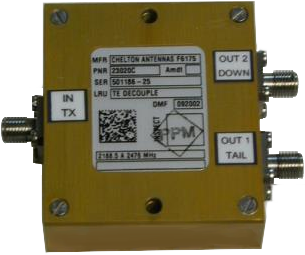

  • In-phase power divider

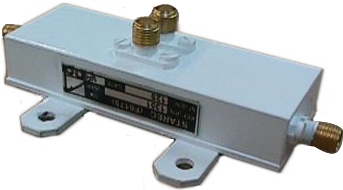

  • Out-of-phase power divider

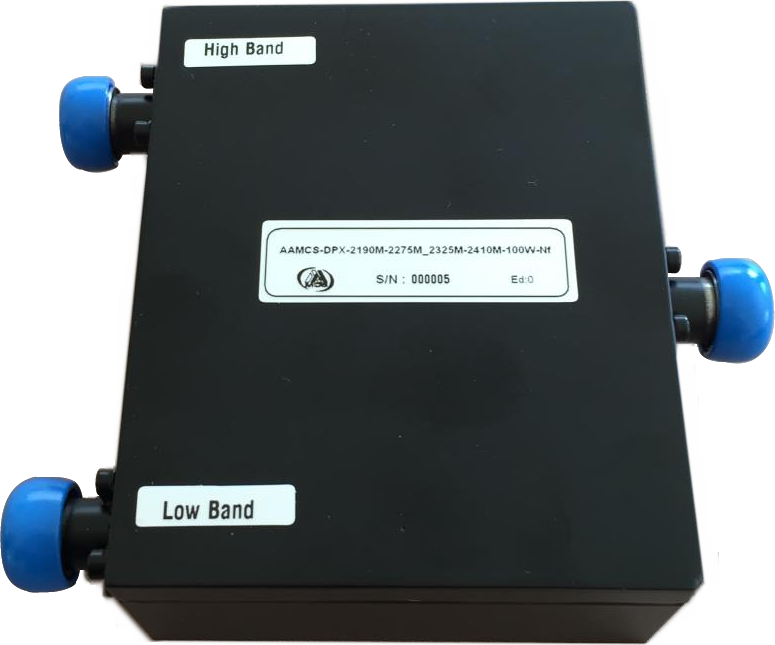

  • Diplexer

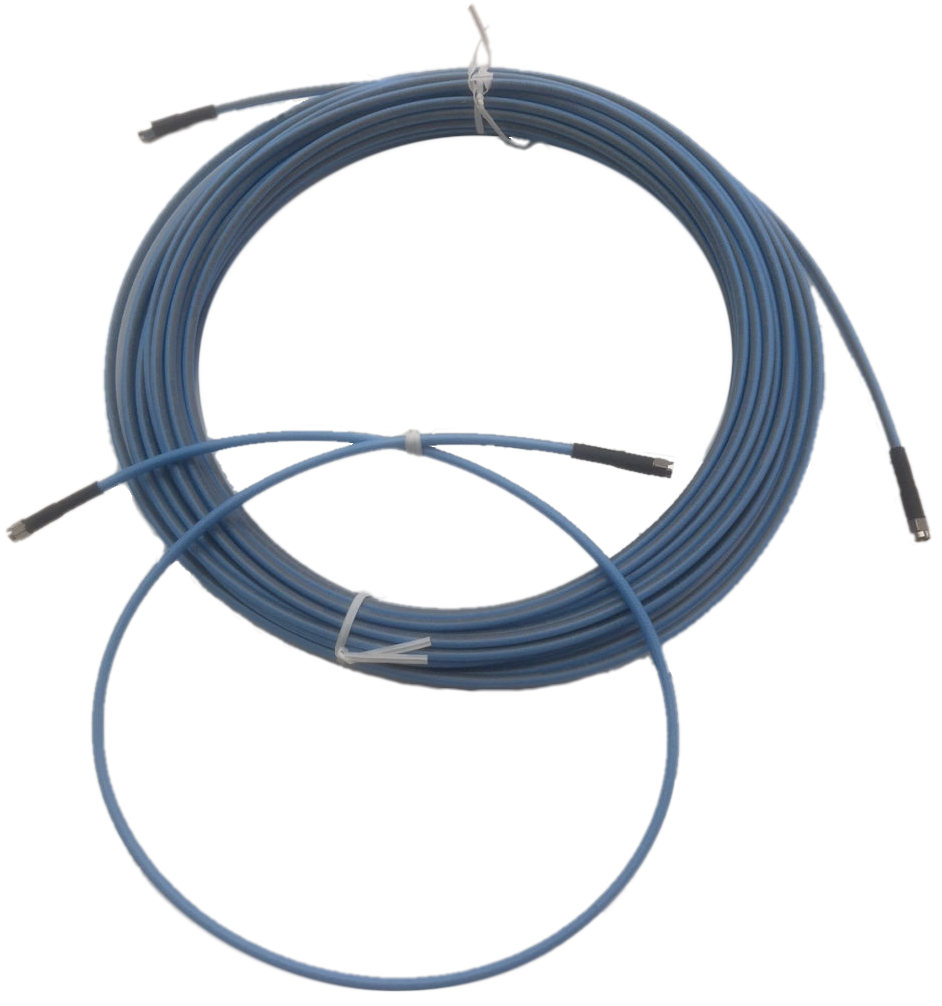

  • Low loss RF cables equipped with connectors

NE 0010 / NE 5023 / NE 5225

HYPTRA designed a range of directional antennas using circular polarization in the S-Band. The aerial is designed for harsh environments : -40°C to +85°C operating temperature, seawater resistant. Antennas can be used in receive or transmit mode.

NE 5225

In option, when used in reception, the antenna can be equipped with filter and LNA.


NE 0010
NE 5023
NE 5225

AA SYSTEL integrates and represents exclusively airborne/on-ground antenna of HYPTRA company. HYPTRA positioned as a key supplier on the commercial and military French markets, HYPTRA designs and manufacutures a full line of turn-key antenna systems including all individual equipment such as : Ground tracking station, pedestals, controller, tracking receivers, radomes, RF subsystems.

The main customers of HYPTRA : Airbus, Dassault Aviation, CNES, Alcatel, THALES, SAGEM, French Flight test centers, Chinese Flight test centers.

AA SYSTEL as System Integrator provides Design architecture, Manufacturing, Factory Acceptance Test & Training, Shipment to customer’s site located at any place throughout the word, on-site installation and commissioning.

We also propose Test Tools such as the Boresight Transmitter Unit providing to the End User an efficient long loop testing.


Boresight Transmitter Unit
AA SYSTEL PRESENTATION_Page_16
AA SYSTEL PRESENTATION_Page_17
AA SYSTEL PRESENTATION_Page_14
AA SYSTEL PRESENTATION_Page_11
AA SYSTEL PRESENTATION_Page_13
AA SYSTEL PRESENTATION_Page_15
AA SYSTEL PRESENTATION_Page_10
AA SYSTEL PRESENTATION_Page_12
AA SYSTEL PRESENTATION_Page_09
AA SYSTEL PRESENTATION_Page_08
AA SYSTEL PRESENTATION_Page_07
AA SYSTEL PRESENTATION_Page_04
AA SYSTEL PRESENTATION_Page_03
AA SYSTEL PRESENTATION_Page_05
AA SYSTEL PRESENTATION_Page_06
AA SYSTEL PRESENTATION_Page_02
AA SYSTEL PRESENTATION_Page_01

Mobile telemetry Ground Station

This mobile telemetry Ground Station is fully equipped for the reception of signals from aerial vehicles.

Embedded mobile ground station

This GS includes two separate rooms :

  • Antenna room with hydraulic lift and 1.50 m / 1.80 m auto-tracking 2 axis antenna with video camera, electronic compass and electronic spirit levels for high mobility
  • Operators room equipped with air conditioning, two 42 U, 19″ cabinets with UPS

Telemetry station on truck. The GS is mainly composed of :

  • One 27 dB (1.50 m) S-Band tracking antenna (HYPTRA) with video camera and zoom
  • One Antenna Control Unit with all operating modes such as RF auto tracking, program track with preloaded data file, slew and manual tracking, GPS tracking
  • One two channels with PreD combiner receiver (RTR from ZDS)
  • One wide band PreD recorder (ETEP)
  • One real-time and post processing unit
  • One IRIG B time GPS receiver
Mobile ground station display

DM Radiocom

DTX 5563
ReferencePowerBand
DTX 5563-2020 WS
DTX 5563-R SOQPSK5 WS + C
DTX 5563 BIFSK-DA-2020 WS
DTX 5563-DA-2020 WS + L
TX-1W OEM1 WS
Tx-UHF-MB20 WUHF

The DTX 5563 (and DTX 5563-20) telemetry transmitters are designed for operation in harsh environment with PCM/FM (15 Mbps) and SOQPSK (30 Mbps) capabilities in one unit.

  • Full S-band : 2185 – 2475 MHz
  • Output power : programmable up to 5 W (DTX 5563) and up to 20 W (DTX 5563-20)
  • Control interface : RS-232
  • Input interface : RS-422 or TTL (Data and Clock)
  • Power supply : 18 – 36 V DC

Airborne Blade antenna (cobham, hyptra, …)

These antennas operating in S-Band or S+C-Bands have been designed for working in vertical/horizontal polarization, for telemetry applications with special conditions of flight and high temperature.

This antenna is installed on AIRBUS aircrafts.

  • Pattern : omni-directional/Azimuth
  • Impedance : 50 Ω
  • RF Connector : Type N female
NE 0059-F-0 (horizontal polarization)
ReferenceBand
NE 0058S
NE 0059S
1054-85-25 (by COBHAM)S
cobham
NE 0058-F-0S + C
NE 0058-G-0S + C
NE 0059-F-0S + C
NE 0059-G-0S + C
NE 0058-F-0 (vertical polarization)

NE 0018 / NE 0022 / NE 705-S

HYPTRA designed a range of antennas using circular polarization with omni-directional azimuth pattern in the S-Band. The marine aluminium antenna base allows to fix the aerial on a mast or on board aerial targets. The aerial is designed for harsh environments : -40°C to +85°C operating temperature, seawater resistant.

In option, when used in reception, the antenna can be equipped with filter and LNA.

NE 0018

NE 0018
NE 0022
NE 705-S

Commint antenna system

This station is designed for signals reception from 1 to 18 GHz in three sub-bands. The feed is can be equipped in option with a YIG filter for short loop tests. It is operated in remote (RS-232C) or local mode.

Commint antenna system

The station is mainly composed of the following parts :

  • Two axis antenna with dish and feed
  • Control & servo power rack 3U
  • Antenna control software for PC

Commint antenna system

VITEM

AA SYSTEL integrates and represents exclusively on-board telemetry transmitters, receivers and amplifiers of VITEM company. VITEM is one of the leaders in these fields.

The main customers of VITEM : Dassault Aviation, Eurocopter (helicopter), French Flight test centers, Chinese Flight test centers.

VTX 6536 NT

The VTX 5000 NT/WT series telemetry/video transmitter is built around a state of the art Phase locked loop FM exciter followed by a high efficiency power amplifier. Working in L, or S-Bands, the VTX 5000 NT/WT series transmitter offers a very wideband frequency response from 1 Hz to 40 MHz which permits High Bit Rate (up to 32 Mbps) or color HD video-data transmission. The used technology allows the unit to operate under the environments as found in aircraft applications.

ReferencePowerBand
VTX 5537 NT5 WS
VTX 6536 NT5 WS

ARES Telemetry and Telecontrol Antennas

This station is designed for signals reception in L, S and C bands (others bands are available upon request). A friendly Man Machine Interface installed on a PC (Windows OS) allows its remote Monitoring & Control via an Ethernet link.

2.4 m S &C bands for Down-Link and S band for Up-Link

Reception is made through a 1.20 m / 1.50 m / 1.80 m / 2.40 m / 3.10 m / 4.20 m dish equipped with auto tracking feed in RHCP and LHCP including 0.7 dB NF LNA, and filters.

Auto-tracking in RHCP or LHCP.

Target tracking can be achieved through the two main modes : Auto-tracking or GPS tracking. Auto-tracking uses Single Channel Monopulse technique.

1.50 m

The station mainly composed of the following parts :

  • External two-axis auto tracking antenna
  • Electronic compass for automatic north reference
  • Electronic spirit level for automatic set-up (transportable version)
  • Control & servo boards
  • Antenna Control Unit (Workstation or laptop)
  • Integrated Tracking receiver
DishBand
1.20 mS
1.50 mS
1.80 mS
1.80 mS + C
2.40 mS
2.40 mS + C
3.00 mS
3.00 mS + C

VITEM

Intended for use with the VTX 5000 series transmitters, the VTA 5000 series power amplifiers are built around an efficient input RF limiter followed by a high efficiency class C amplifier chain, the spurious purity of which is given by an output RF filter.

The VTX 5000 series transmitter delivers 20 W (or 10 W) constant output power whatever the output level between 17 dBm (50 mW) and 36 dBm (4 W).

Intended for linear amplification or COFDM application the VTA 5040 L power amplifiers is built around an high efficiency class A amplifier chain, the spurious purity of which is given by an output RF filter.

ReferencePowerBandVoltage
VTA 6564320 WS + C11 - 36 V
COFDM Amplifier10 WS11 - 32 V
VTA 554320 WS24 - 32 V
VTA 5540 L

NOMAD Mobile Tracking Antennas

The proposed system is a portable ground station used in S-Band, L-Band or C-Band for data reception and/or transmission with 19 dBi, 21 dBi or 23 dBi gain (S-Band).

Total weight is 45 Kg.

Mobile NOMAD 23 dBi gain

The station is mainly composed of the following parts :

  • External two-axis auto tracking antenna with flat panel equipped with SCM tracking circuits, LNA and filters
  • Electronic compass for automatic North reference (option)
  • Antenna Control Unit (ACU)
  • TCP/IP link between ACU (PC) and tracking antenna
  • Tracking receiver (1 or 2 channels) integrated into the pedestal (option)
  • High speed rotation : 60°/s (option)
  • Acquisitions mode « Logbook »
  • Video camera (option)
GainBand
22 dBiC
19 dBiS
21 dBiS
23 dBiS
Mobile NOMAD antenna display
